กล้องใต้น้ำสำหรับการสำรวจและศึกษาสภาพแวดล้อมใต้น้ำ ใช้สำหรับการวิจัยและใช้งานในอุตสาหกรรม

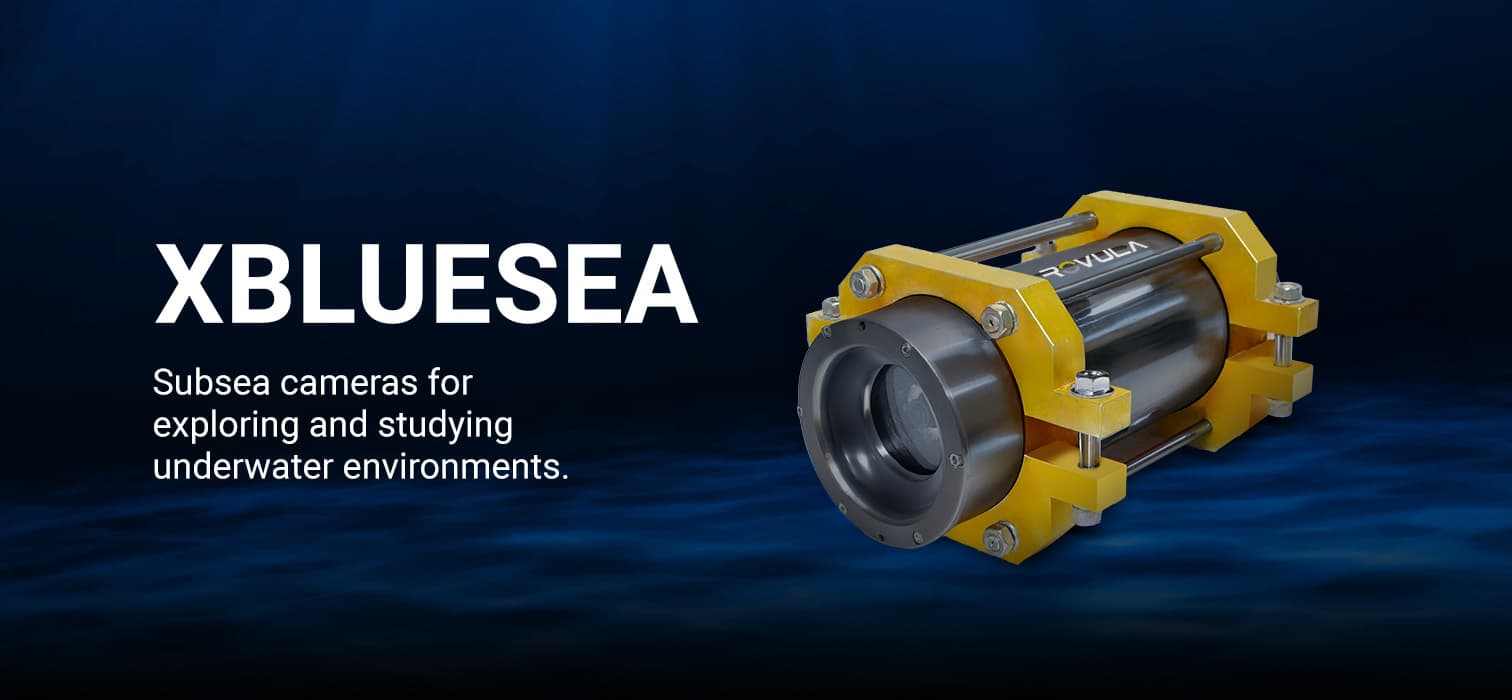

Subsea cameras for exploring and studying underwater environments, conducting research, and performing industrial applications.
Detection and Identification of Aquatic life
Specifications
Discover the unmatched capabilities of XBLUESEA
KEY ATTRIBUTES : Mechanical Characteristics of Camera Hull
MATERIALS
Aluminum 6061, Clear Acrylic, Clear Polycarbonate (Optional)
Stainless Steel SUS304 (Fasteners)
FINISHING
Hard Anodized (Aluminum 6061)
1.5 kg (in water, with clamps)
WEIGHT
4 kg (in air, with clamps)
DIMENSION
With clamps: 180 x 330 x 126 mm
Without clamps: 101.6-mm (4-inch) Diameter, 330-mm Length
O-RINGS
ISO 037, 63.22 x 1.78, 1 ea.
ISO 034, 53.7 x 1.78, 1 ea.
ISO 152, 82.22 x 2.62, 4 ea.
Hardness N70
DEPTH RATING (SEAWATER)
20 m (Clear Acrylic)
15 m (Clear Polycarbonate)
* If need to operate deeper, it will require thicker material but may cause distorted image and color.
** Hull structure can hold pressure up to 100-m depth.
CATHODIC PROTECTION
Zinc (Sacrificial anode)
* Anode lifetime depends on water condition; regular inspection is recommended.
Camera Specification
RESOLUTION
Max 1080p
VIDEO OUTPUT
Ethernet
LIGHT RATING (COLOR)
0.005 Lux (F1.2, AGC ON)
0.008 Lux (F1.6, AGC ON)
DEVICE
1/2.8” Progressive Scan CMOS
LENS
4 mm (Optional: 2.8/6/8/12 mm)
OPERATION
