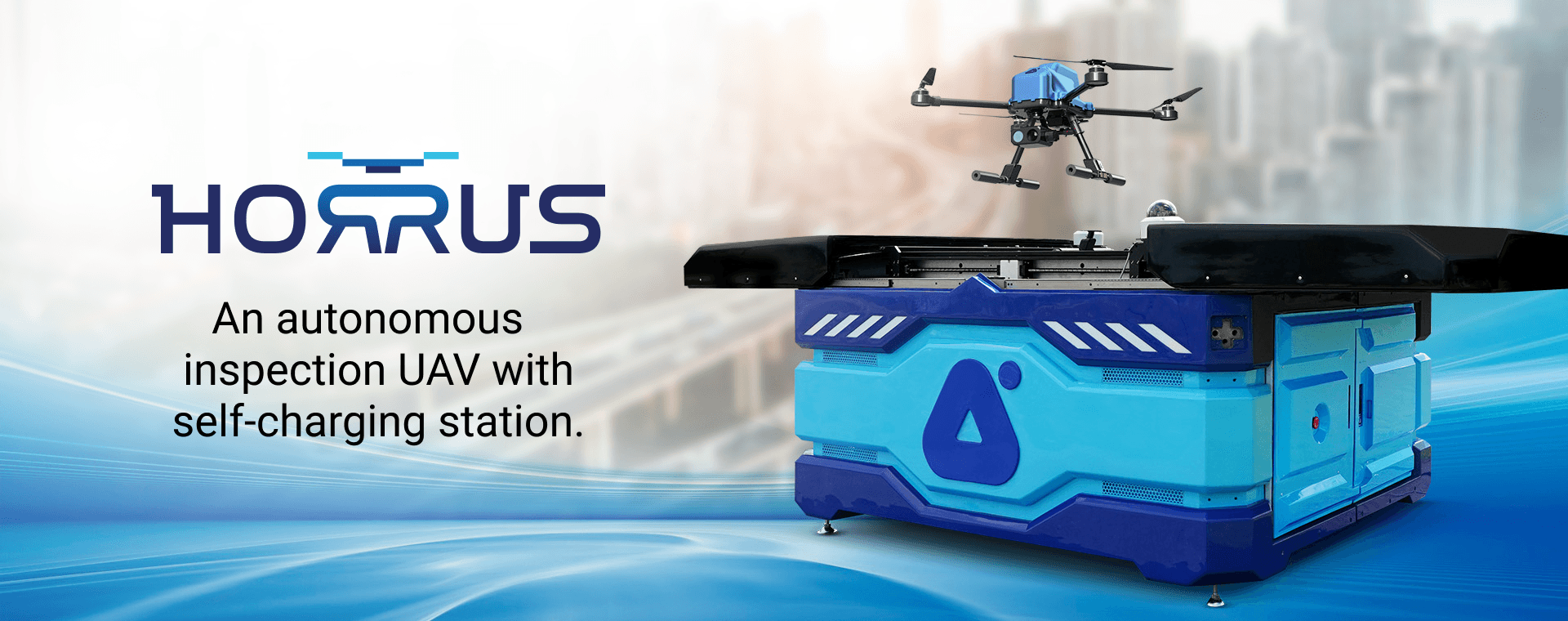

AN AUTONOMOUS INSPECTION UAV WITH SELF-CHARGING STATION
Designed for unmanned aerial inspection and surveillance missions in remote and dangerous areas, HORRUS provides a self-sustained UAV with docking station, self-charging and data collection. Working together as a team, UAV provides an aerial overview of the site while ground robots inspect up close as needed.
Thailand’s first fully automated UAV system.
“HORRUS” is Thailand’s first fully automated unmanned aerial vehicle (UAV) system that can perform aerial mission 24/7 with self-maintenance ability in any environment, especially in remote and dangerous areas. The system consists of 3 main technologies that contribute to successful pilot-free mission including an autonomous UAV, a smart ground station, and a software platform.
Specifications
Discover the Unmatched Capabilities of the HORRUS Autonomous Drone
KEY ATTRIBUTES
Autonomous Control:
effortlessly performs tasks at dangerous heights, significantly reducing the risk of accidents, falls, or injuries
Proven Versatility:
adaptable for various inspection and monitoring tasks, ensuring reliable performance across industries
Accurate Data Capture:
equipped with high-resolution imaging and video capabilities, providing detailed visual data for thorough analysis
Customizable Platform:
seamless integration with AI/ML detection, IoT sensors, and CCTV systems. Supports additional drones and robots through SDK, with customizable report generation. Flexible UI customization ensures the platform meets your specific needs
Scalable Solution:
easily expandable fleet with minimal effort once initial setup and training are complete. Integrate additional drones seamlessly
Versatile Payloads:
supports a wide range of payloads, including RGB, thermal, night vision, X30 zoom, gas detection, 4K resolution, lidar, and more

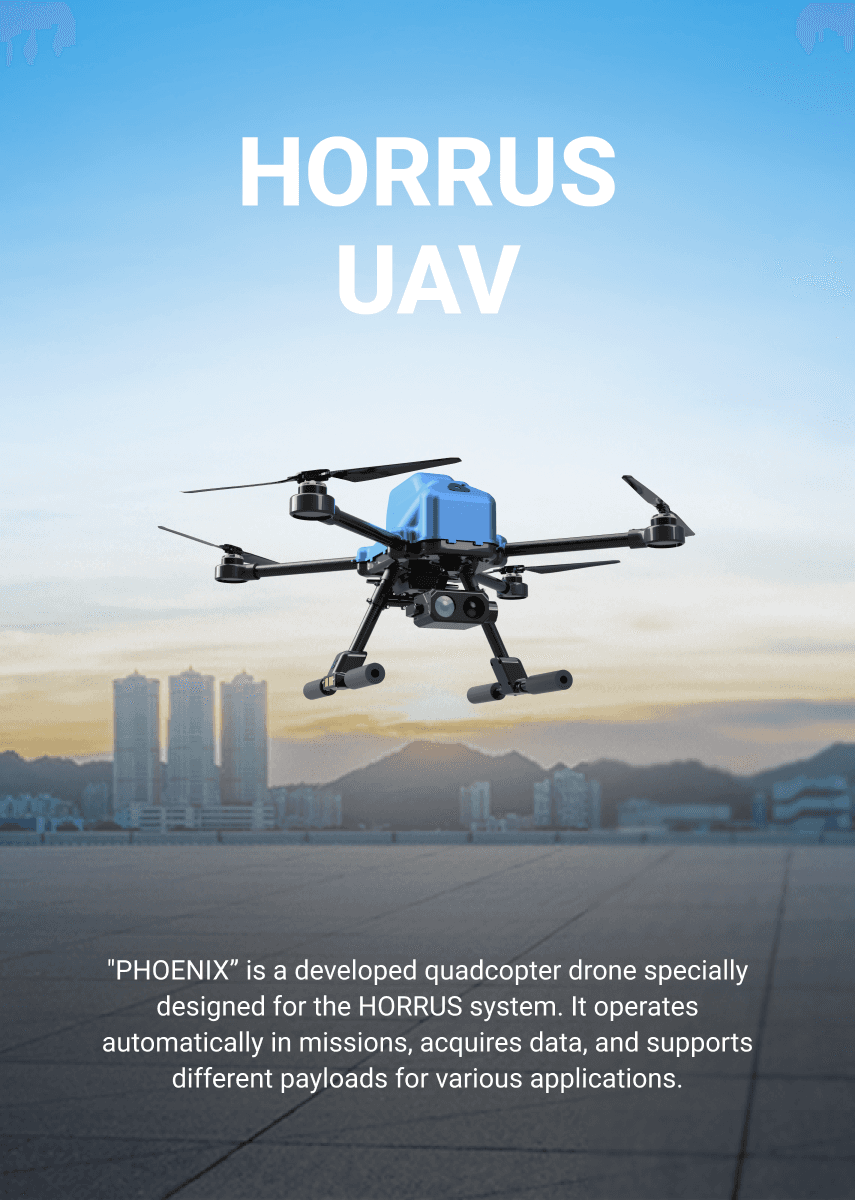

DRONE
Dimension:
1050 x 1050 x 410 mm
TOW/MTOW:
6.4 KG/ 8 KG
Flight time:
30 mins (Approx.)
Operating Speed:
5-16 m/s
Operating Altitude:
20-90 m (Max 200+ tesed)
Signal Range:
6 KM (From Station)
Coverage Area:
80 Rais/Charge
GSD:
4.13 ppx
Power Source:
Li-Ion 22000 mAh
Visual Camera:
Image 25.9 Megapixels 20X Optical Zoom Video – 4K 60 FPS 0.6 KG

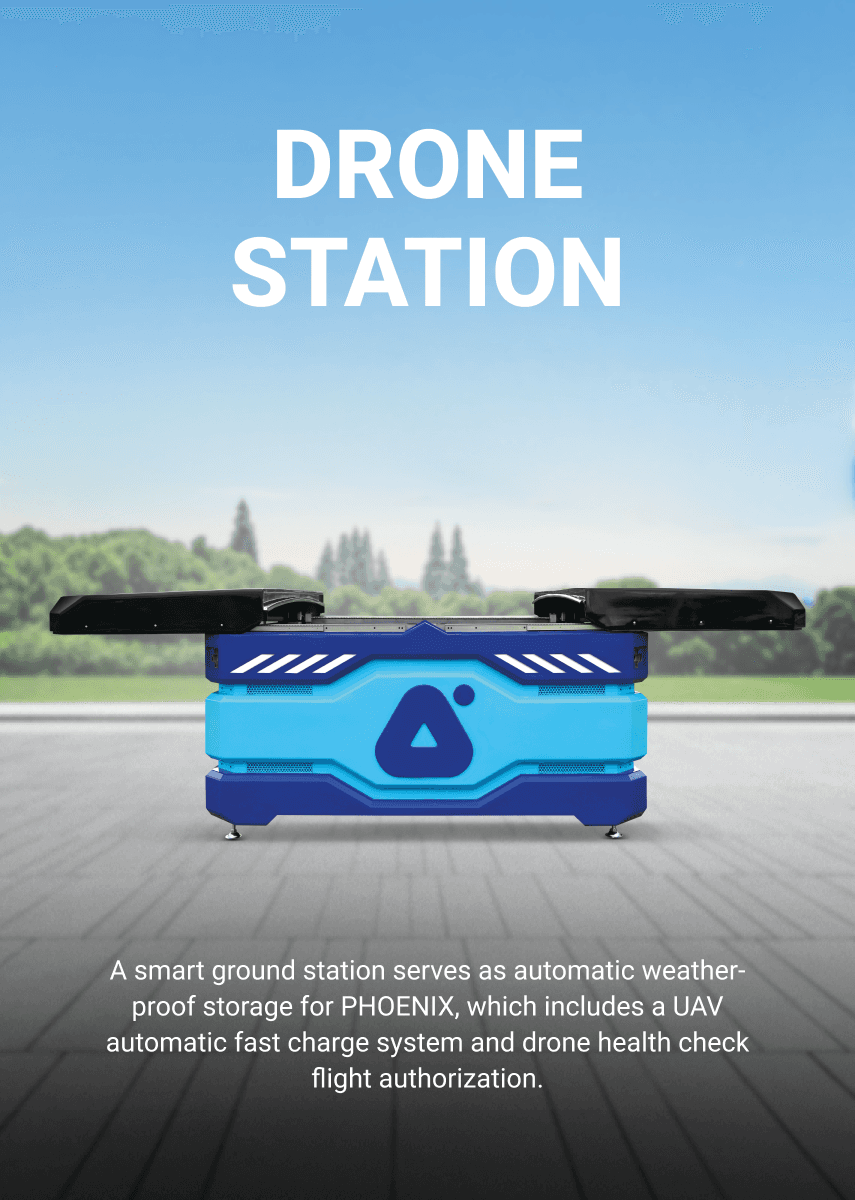

STATION
Horrus Box:
1.7 x 2.0 x 1.0 m
Weather Station:
0.7 x 0.7 x 3 m
Weight:
600 KG
Power Source:
220AC
Back-up Power:
1.0 Hr (Approx.)
Deployment Time:
30s
Excepted Lifetime:
5 Years (Approx.)
