Discover the cutting-edge of shipment services with ARV’s drone delivery system. Our routine procedures guarantee secure and smoothly incorporated deliveries for all types of enterprises

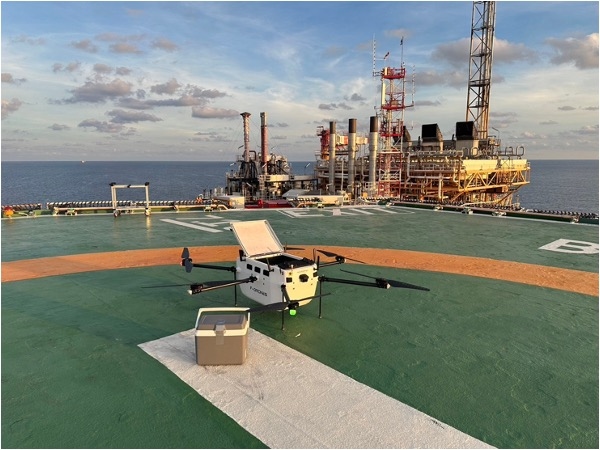

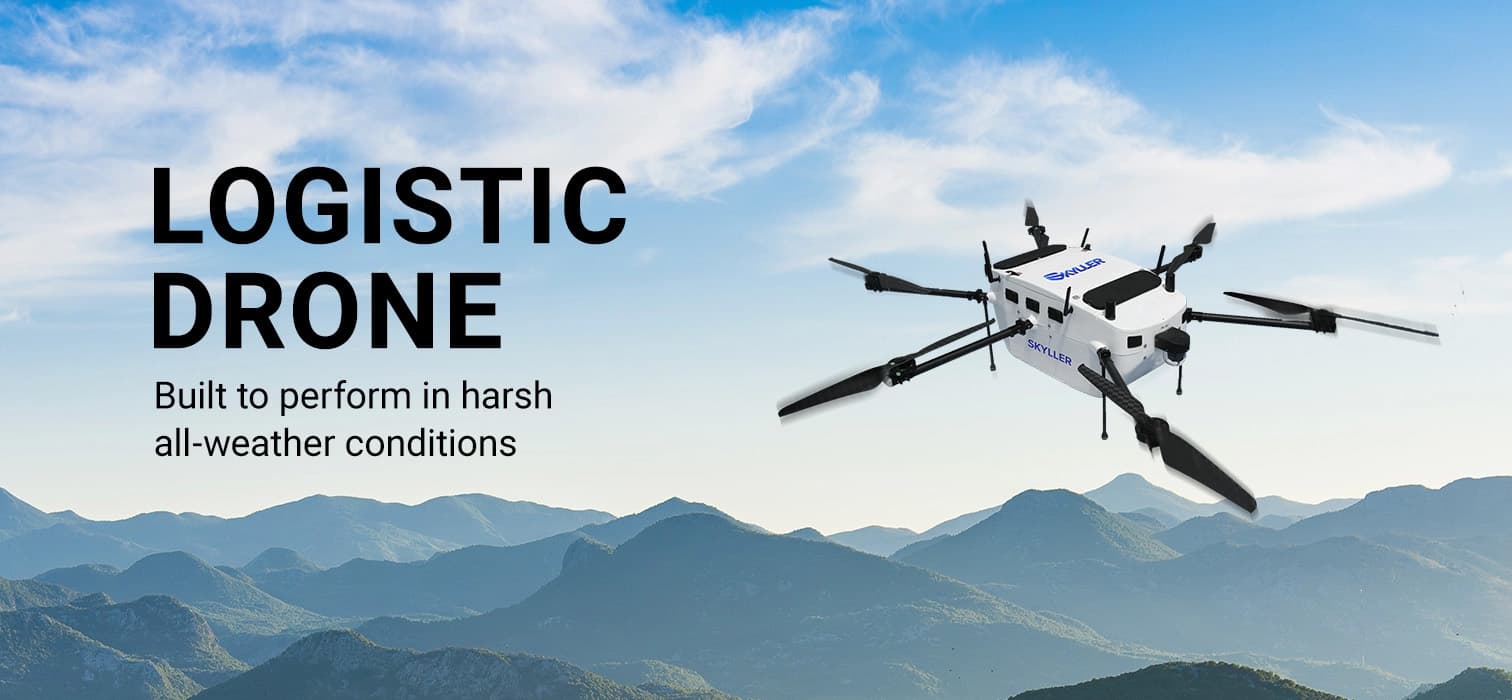

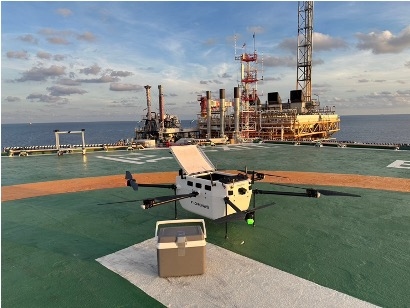

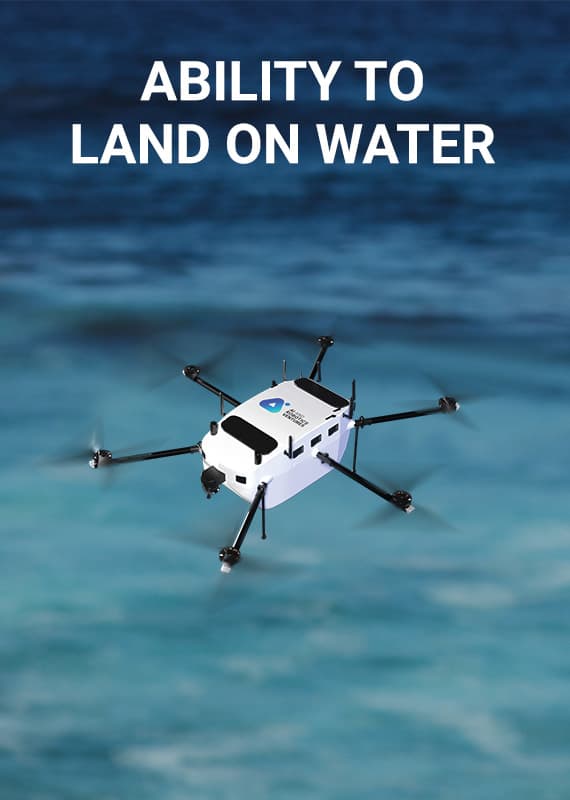

The ARV Logistic Drone stands out as the first delivery drone globally to receive classification society certification. Designed for all-weather operations, it can land on water if required and offers three versions: Standard, Winch, and Plus.
PERFORMANCE ENVELOPE
Maximum Cruise Speed
50 km/h (14 m/s)
Maximum Ascent Speed
18 km/h (5 m/s)
Maximum Descent Speed
9 km/h (2.5 m/s)
Maximum Attitude
2,500 meters
OPERATING LIMITS
Centre of gravity (COG)
Should lie within the red boundary shown in the image
Maximum take-off weight (MTOW)
34 Kilograms
Payload Size (non-winch)
32 cm x 32cm x 30 cm

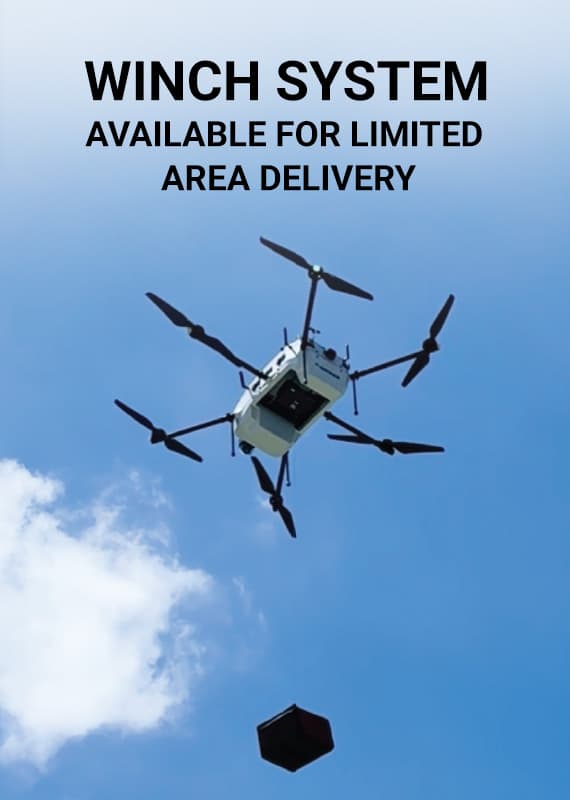

Payload Size (winch)
27 cm x 27cm x 20 cm
Vibrations Limits
30 m/s^2
BATTERY TYPE VS DELIVERY RADIUS
Configurations
Battery/Delivery Radius
Non-Winch (5 kg payload)
22 Ah Set
44 Ah Set/21 Km
Winch (4.5 kg payload)
22 Ah Set
44 Ah Set/17 Km
ENVIRONMENTAL LIMITS
Operating Temperatures
0-55 Degree Celsius
Wind Resistance
36 km/h (10/s) (Reduce the cruise speed accordingly)
Icing, thunderstorms or heavy rain
No operation
Extreme EMF
Avoid locations that might cause EMI like power wires, grids etc.
Sensitive Locations
Avoid areas that might have GPS jammers or UA
