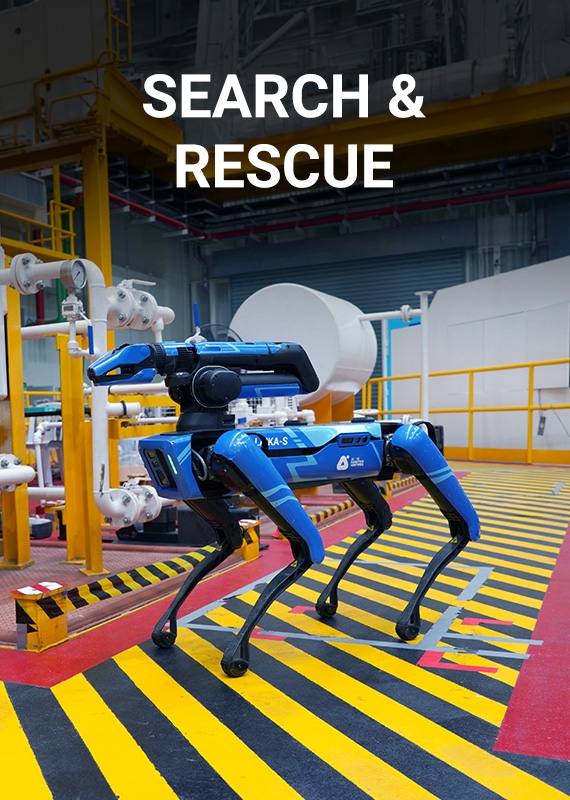

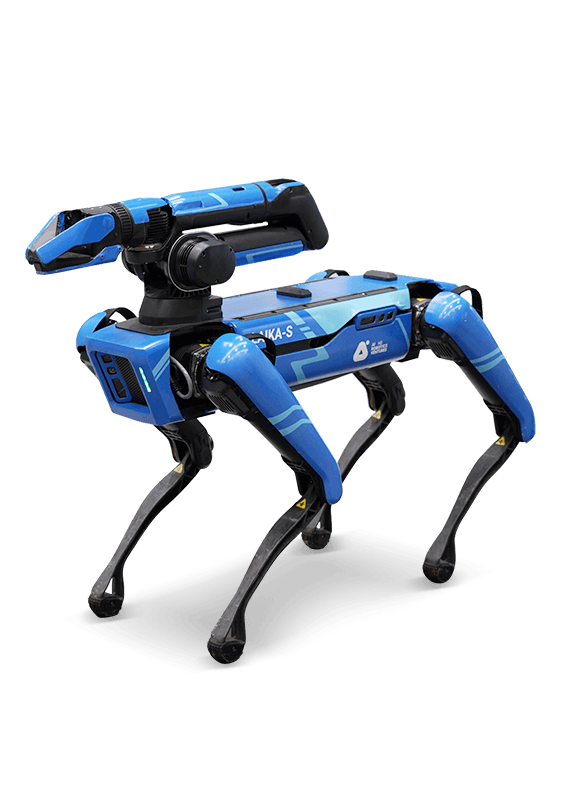

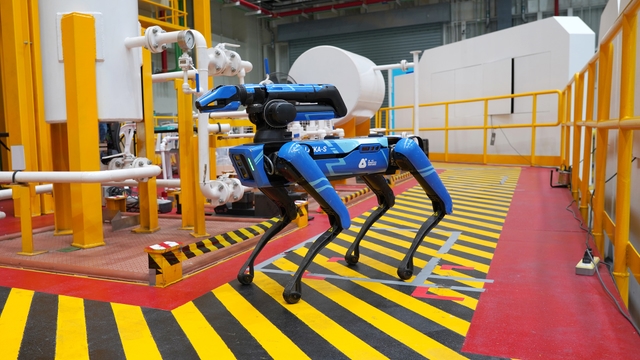

Quadruped Robot equipped with various sensors including visual camera, thermal camera, LiDAR, etc. With its agility to walk up/down between platform floor, Laika could reduce the present of actual human on the platform which could increase overall safety of the Offshore Operation

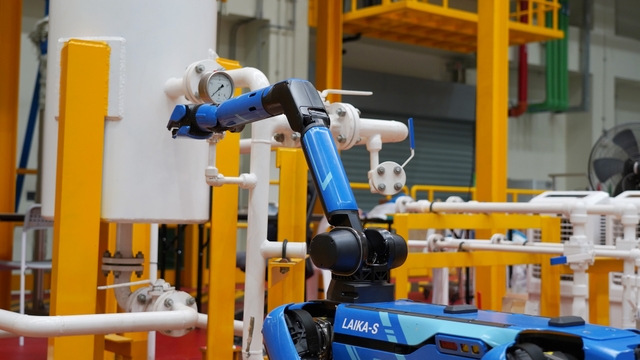

To conduct inspection operations, it's essential to have human operators to visit the location, which can be time-consuming and incur expenses and potential risks. Site inspections are repetitive tasks aimed at ensuring accuracy and safety. Therefore, having a robot that regularly operates in the inspection area can be beneficial. This robot is equipped with payloads for inspecting the site, and they can transmit visual information back to the operator. This allows the controller to view the project or specific areas remotely without the need for physical presence at the site.
BASE ROBOT
DIMENSIONS
Length
1100 mm (43.3 in)
Width
500 mm (19.7 in)
Height (Sitting)
191 mm (7.5 in)
Default Height (Walking)
610 mm (24.0 in)
Max Height (Walking)
700 mm (27.6 in)
Min Height (Walking)
520 mm (20.5 in)
Net Mass/Weight (Spot with battery)
32.7 kg (72.1 lbs)
LOCOMOTION
Max Speed
1.6 m/s
Max Slope
30*
Max Step Height
300 mm (11.8 in)
TERRAIN SENSING
Horizontal Field of View
360*
Range
4 m (13 ft)
Lighting
> 2 Lux
Collision avoidance
maintains set distance from stationary obstacles
CONNECTIVITY
WiFi
2.4GHz / 5GHz b/g/n Ethernet
AUDIO & VISUAL SIGNALS
Pre-configured behaviors for manual and autonomous operations
LED Brightness
Adjustable up to 1010 Lux
Max Projection Distance
1.8 m in front of robot
Buzzer Volume
Adjustable up to 110 dB at 1 m distance from robot
ENVIRONMENT
Ingress Protection
IP54
Operating Temp.
-20?C* to 55?C Robot must be powered on at a minimum temperature of 0? C.
BATTERY
Battery Capacity
564 Wh
Average Runtime*
90 mins. *Runtime may vary depending on payloads and environmental factors
Standby Time
180 mins
Length
324 mm (12.8 in)
Width
168 mm (6.6 in)
Height
93 mm (3.7 in)
Mass/Weight
5.2 kg (11.5 lbs)
CHARGER
Input Voltage
100-240VAC 50/60Hz 8A Max
Output
35-58.2 VDC, 12A Max
Length
380 mm (15.0 in)
Width
315 mm (12.4 in)
Height
178 mm (7.0 in)
Mass/Weight
7.5 kg (16.5 lbs)
Operating Temp
0?C to 45?C
TABLET
Height
127 mm (5.0 in)
Width
214 mm (8.4 in)
Depth
10 mm (0.4 in)
Weight
426 g (0.9 lbs)
Touch Screen Size
8” diagonal
Resolution
1920x1200
Ingress Protection
IP65
Joystick add-on available
TRAVEL CASES
ROBOT CASE Includes robot and tablet
Length
927 mm (36.5 in)
Width
546 mm (21.5 in)
Height
464 mm (18.25 in)
Net Mass/Weight
47.6 kg (105 lbs)
POWER CASE Includes two batteries and charger
Length
810 mm (32 in)
Width
530 mm (21 in)
Height
300 mm (12 in)
Net Mass/Weight
28 kg (61 lbs)
PAYLOAD MOUNTING
Max Weight
14 kg (30.9 lbs)
Mounting Area
850 mm (L) x 240 mm (W) x 270 mm (H)
Mounting Interface
M5 T-slot rails Connector = DB25 (2 ports)
Power Supply
Unregulated DC 35-58.8V, 150W per port
Integration
Available software API and hardware interface control document
SPOT DOCK
DIMENSIONS
Length
1140 mm (44.9 in)
Width
414 mm (16.3 in)
Height
403 mm (15.9 in)
Mass/Weight
22.9 kg (50.5 lbs)
POWER
Input= 90-277 VAC
90-277 VAC
Output
58V at 12A
Charge Time
2-3.5 hours** **Charge time varies based on table below
ENVIRONMENT
Operating Temp
0?C to 35?C
Lighting
Ambient light required
Mounting
Bolt/tie down locations provided
CONNECTIVITY
Gigabit Ethernet passthrough to robot
CERTIFICATIONS
cTUVus Certified to UL 1564 and CSA C22.2 No. 107.2
